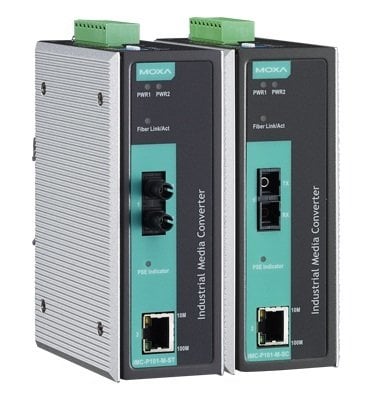

IMC-P101-M-ST-T
Industrial PoE Media Converter, multi mode, ST connector, -40 to 75°C
-
Technical Support Request
Technical support request form
Datasheet
Technical Support Request
Datasheet
Fast Delivery!
IMC-P101-M-ST-T
Industrial PoE Media Converter, multi mode, ST connector, -40 to 75°C
- 10/100BaseT(X) auto-negotiation and auto-MDI/MDI-X feature
- IEEE 802.3af compliant PoE PSE hardware
- Power failure alarm from relay output
- Ability to work in store-and-forward and pass through modes
- Operating temperature range -40 to 75°C
- Redundant dual DC power inputs
IMC-P101-M-ST-T model Ethernet-fiber converters enable the conversion of Ethernet data from 10/100BaseT(X) to 100BaseFX (with ST type connector). These converters, classified as power source equipment (PSE), eliminate the need for additional cabling by providing up to 15.4 watts of power to IEEE 802.3af compliant powered devices when used. IMC-P101 series converters with IEEE 802.3/802.3u/802.3x and 10/100M, full/half-duplex and MDI/MDI-X autosensing support offer a holistic solution for your industrial Ethernet network. T models can operate smoothly at temperatures between -40 and 75 degrees.
